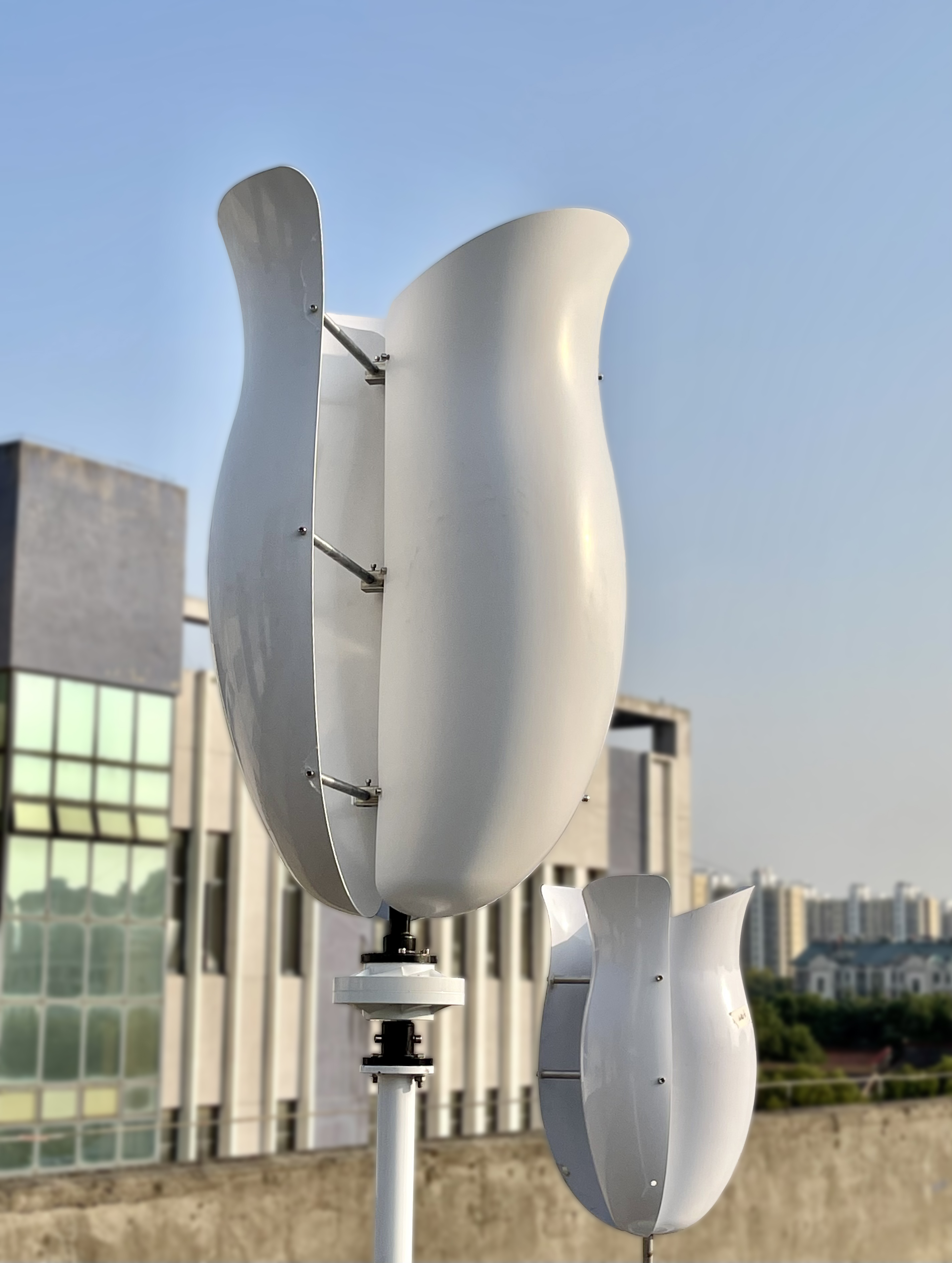

New model Flower type 300w Rose Wind Turbine Generator For Home Use

Short Description:

1,Curved blade design,utilizes wind resource effectively and obtains a higher power generation.
2,Coreless generator, Horizontal rotation and aircraft wing design reduce the noise to an unperceivable level in natural environment.
3, Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a small wind pressure even in strongwind.
4,Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while efficiency improved.
5,Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation.


Product Detail

Product Tags

item F-Rose
Rated power(W) 300w
Max power(W) 350w
Started wind speed (m/s) 1.0m/s
Cut-in wind speed (m/s) 1.5m/s
Rated Wind speed (m/s) 10m/s
Rated voltage(AC) 12v/24v
Blades height(m) 0.65m
Safe wind speed (m/s) ≤40m/s
Blades quantity 3
Blade material glass/basalt
Generator Three phase permanent magnet suspension motor
Control System Electromagnet
Generator protection grade IP54
Mount Height(m) 7~12m (9m)
Overspeed protection Electromagnetic brake
Work environment humidity 90%
