Features
Working Principle The principle of lanterns wind turbines is to use the wind to drive the rotation of the windmill blades, and then increase the speed of the rotation through the speed increaser to promote the generator to generate electricity. According to the current windmill technology, about three meters per second of the breeze speed (the degree of breeze), you can start generating electricity. Wind power is forming a boom in the world because wind power has no fuel problems and no radiation or air pollution.
♻[POWERFUL PERFORMANCE]
~ 3Phase AC PMG, permanent magnet generator with low torque, high-power tracking intelligent
microprocessor, effective regulation of current and voltage, high wind energy utilization factor, an increase of annualpower
generation. Low start wind speed; Auto Wind direction adjustment. ♻[HIGH-QUALITY BLADE] ~ The blade material is made of high-strength plastic with 30% carbon fiber element and anti-UV anti-corrosion material. At the same time, the wind turbine blade adopts the new technology of precision injection molding, coupled with the optimized aerodynamic shape design and structural design, which effectively reduces the resistance torque of the generator, so that the wind wheel and the generator have better effect matching characteristics, and the unit runs more reliable
♻[STYLE ADVANTAGE]
~ The lantern style is more three-dimensional
and unique with it’s compact shape, features the lowest start up wind speed, windward area is much larger, enabling it to generate power at lower wind speeds.Vertical-axis wind turbines are better able to harvest turbulent air flow found around buildings and other structures.
♻[WIDE APPLICATION]
~ This wind turbine is coated with a special process that provides excellent resistance to oxidation and corrosion under any harsh conditions, with excellent corrosion resistance, water resistance and sand resistance. It is ideally suited for the leisure sector and is known for charging batteries for boats, gazebos, cabins or mobile homes, as well as for green windmills, home, corporate and industrial energy supplements!
Installation Steps
1.Install the middle flange plate

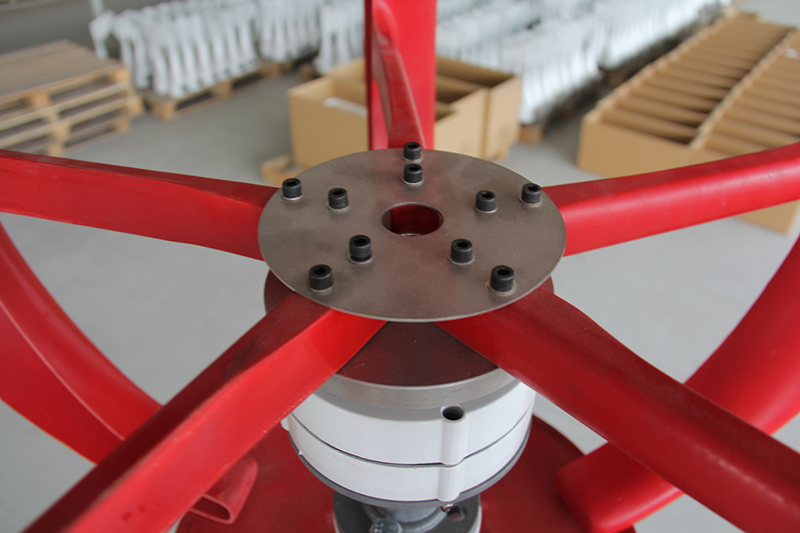

Sheathe the flange plate on the shaft of the generator, set the generator into the center of the impeller blade. According the label, adjust the position, connect the bolts and fix the bolts.
2. Connect the cable, charge controller and battery.
After installation of each connection, gently rotate the blades to observe if the connection position is normal, confirmed no abnormality, installed on the tower rod. Before the three wires connecting to the charge controller, please connect the batteries to the controller.
Attention
●Battery should be connect with controller before wind turbine connected with controller.
●If above started instruction are not followed when assembling and installing the wind turbines, we are sorry that any problem or failure resulted are not to be covered by warranty.
Specifications
| Model: | FR-300 |
| Color: | White /Red |
| Power source: | Wind |
| Voltage: | 12 V |
| Rated wattage: | 300W |
| Max wattage: | 310W |
| Max wattage: | 610 W |
| Start wind speed: | 2 m/s |
| Rated wind speed: | 12 m/s |
| Safe wind speed: | 45 m/s |
| Main engine net weight: | 12.8 kg (28.22 lbs) |
| Wind wheel diameter: | 0.9 m (2.95 ft) |
| Blade number: | 5 Blade |
| material: | Nylon fiber |
| Generator: | 3 phase AC PMG |
| Braking way: | Electromagnetism |
| Wind direction adjustment: | Auto adjust |
| Working temperature: | -40℃ – 80℃ |
| Gross weight: | 12.33 kg ( 27.18 lb ) |
| Package size: | 61 X 46 X 30 cm ( 24.0 X 18.1 X 11.8 inch ) |
